Our Products

DALMEC Industrial Manipulators allow the ergonomic, safe and effective handling of any product. We are able to lift every kind of product weighing from 6 up to 1500 kilograms using compressed-air only.

Dalmec Industrial Manipulators with Rigid-articulated Arms

DALMEC Industrial Manipulators with rigid – articulated arms, equipped with special gripping tools, are suitable to handle manufactured products having an off-set centre of mass compared to the vertical axis of the Manipulator arm. The modular structure has been designed to resist the torsions resulted from this stress.

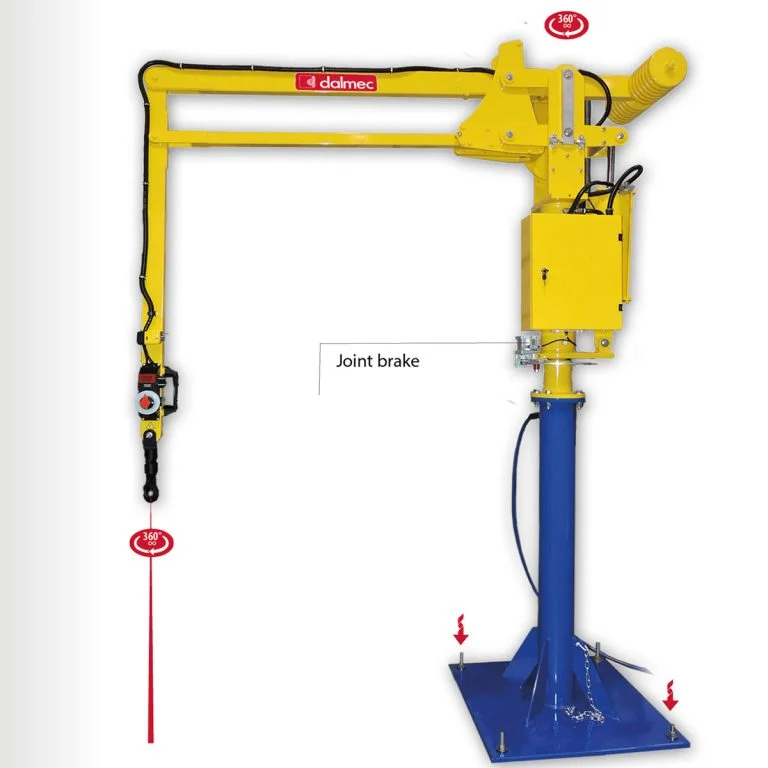

PARTNER STANDARD

Versions PSC – PSF – PSS
Weight capacity 300 Kg
Radius max 2900 mm
Vertical lift 1900 mm
Rotation axes 2
Misaligned loads NO

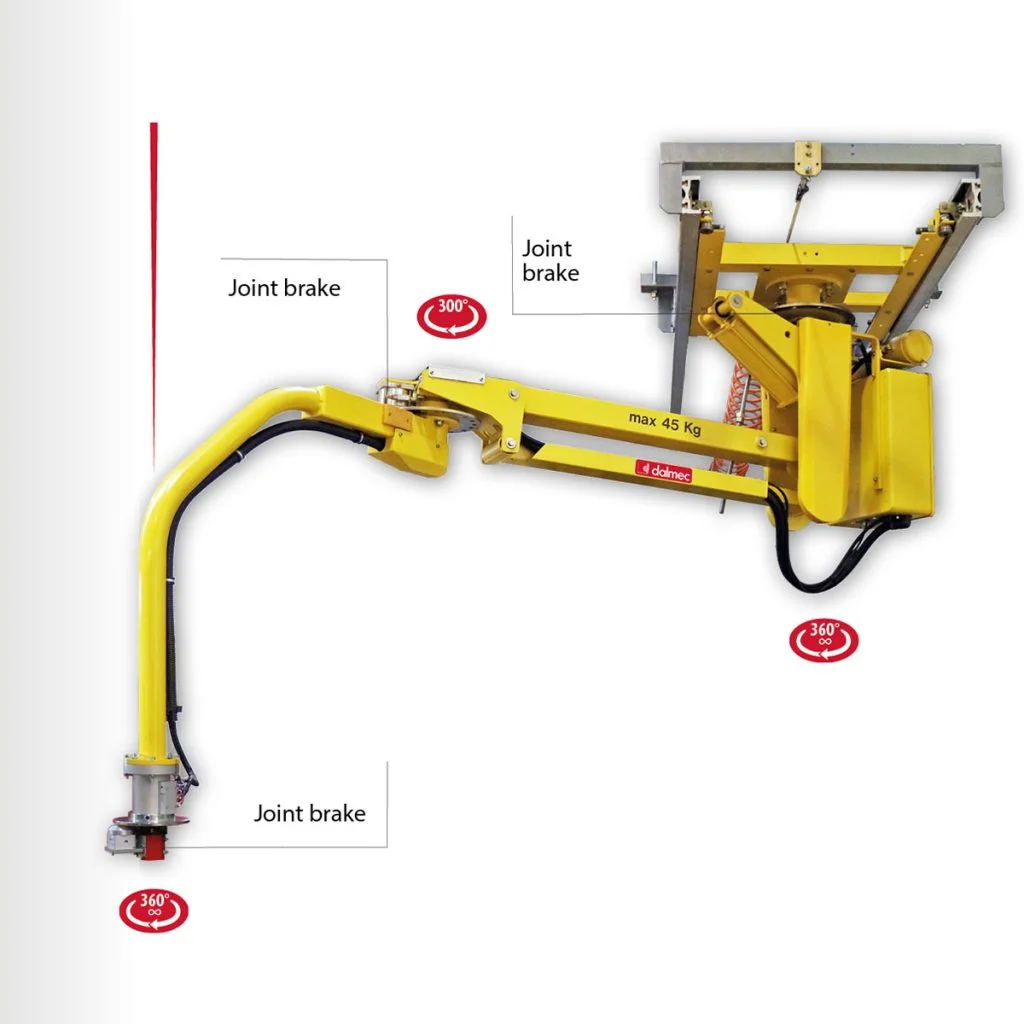

MICROPARTNER

Versions MIC – MIF – MIS
Weight capacity 125 Kg
Radius max 2800 mm
Vertical lift 1400 mm
Rotation axes 3
Misaligned loads SI

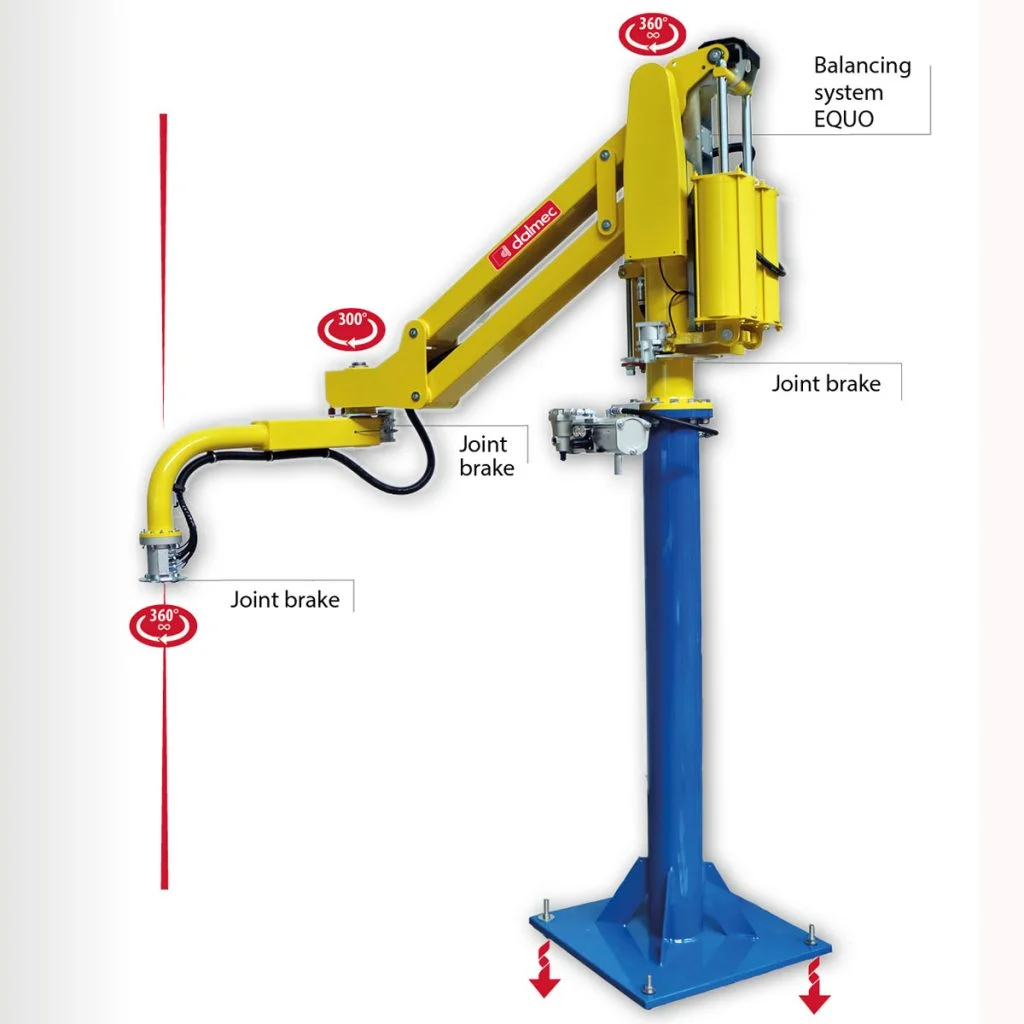

PARTNER EQUO

Versions PEC – PEF – PES
Weight capacity 550 Kg
Radius max 4000 mm
Vertical lift 2450 mm
Rotation axes 3
Misaligned loads SI

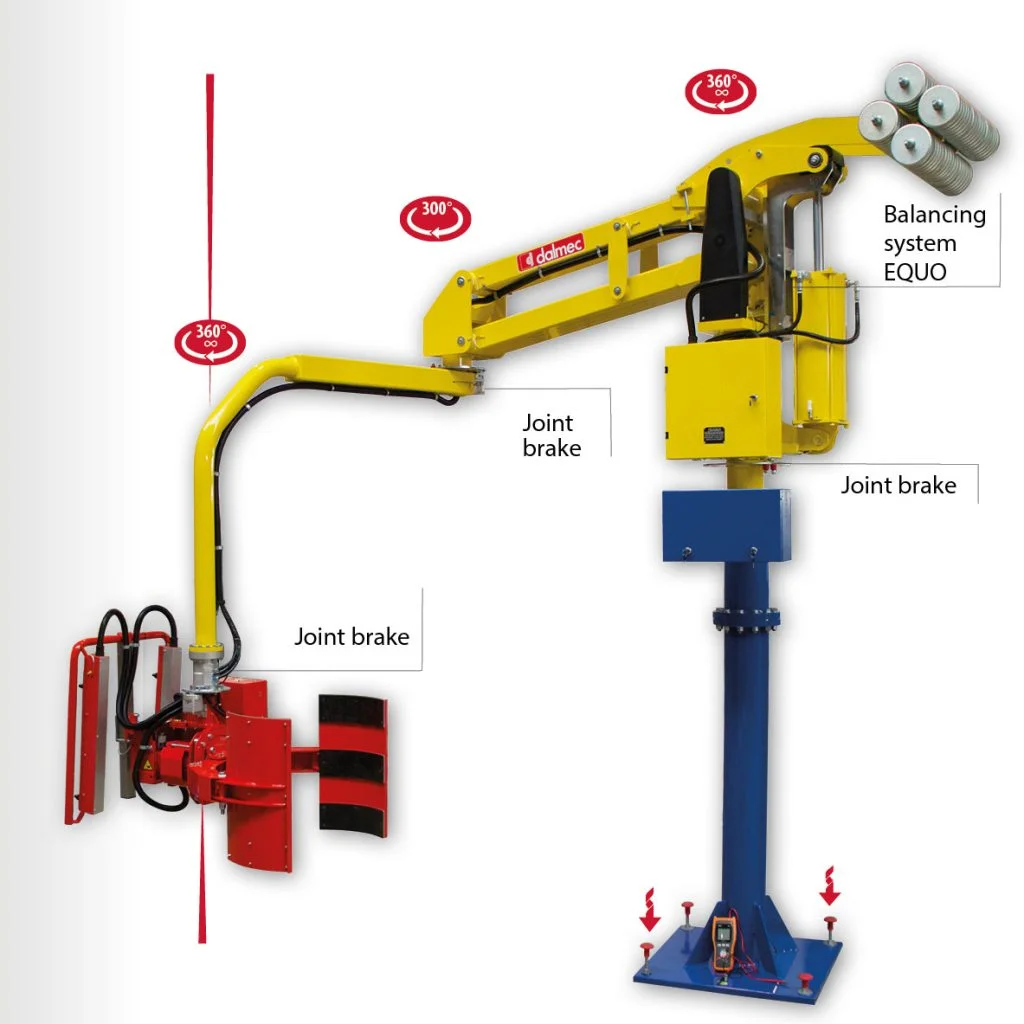

MAXIPARTNER EQUO

Versions MEC – MEF – MES
Weight capacity 900 Kg
Radius max 4500 mm
Vertical lift 2200 mm
Rotation axes 3
Misaligned loads SI

MEGAPARTNER

Versions MGC
Weight capacity max 1500 Kg
Radius max 5000 mm
Vertical lift 3050 mm
Rotation axes 3
Misaligned loads SI

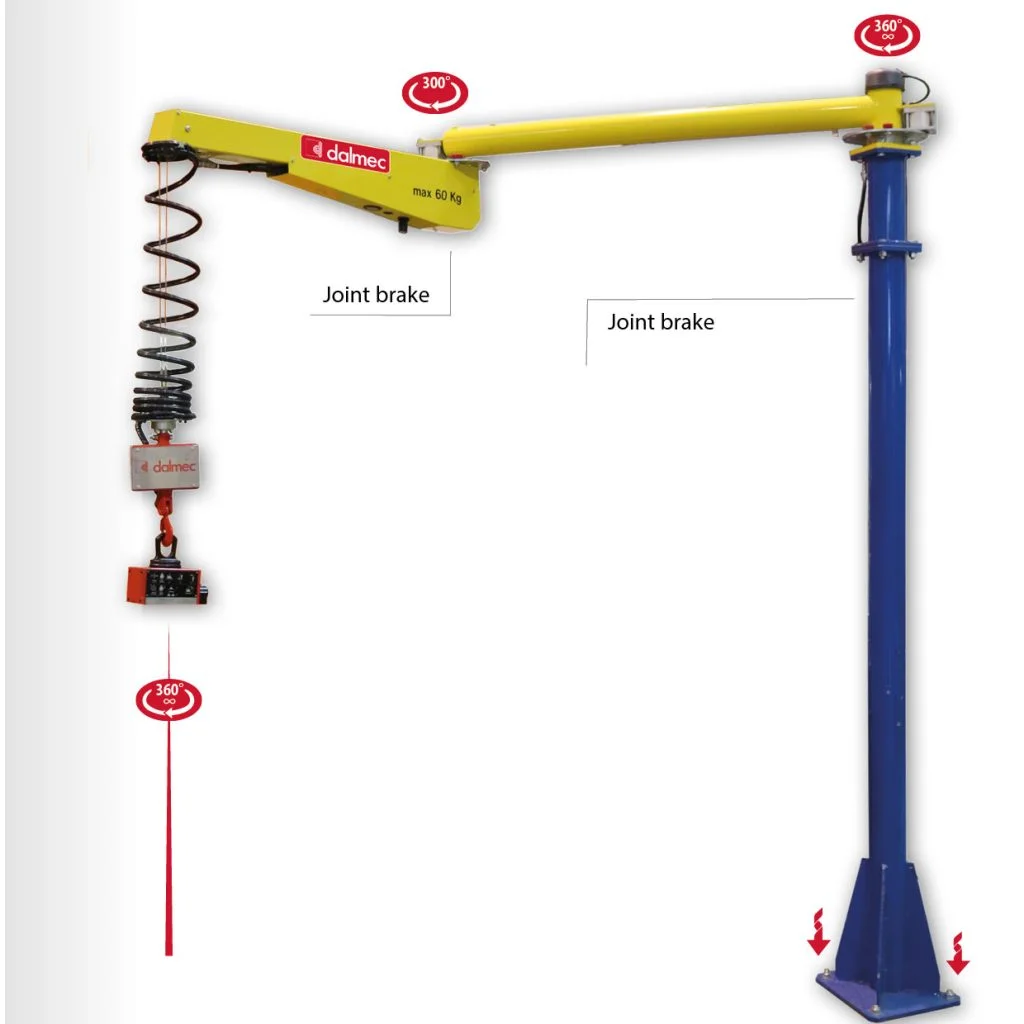

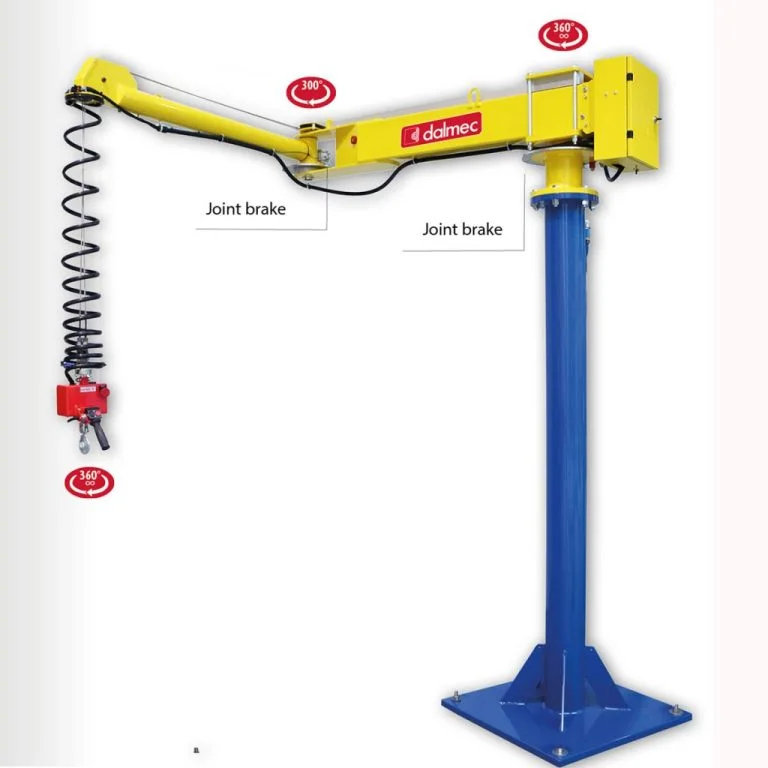

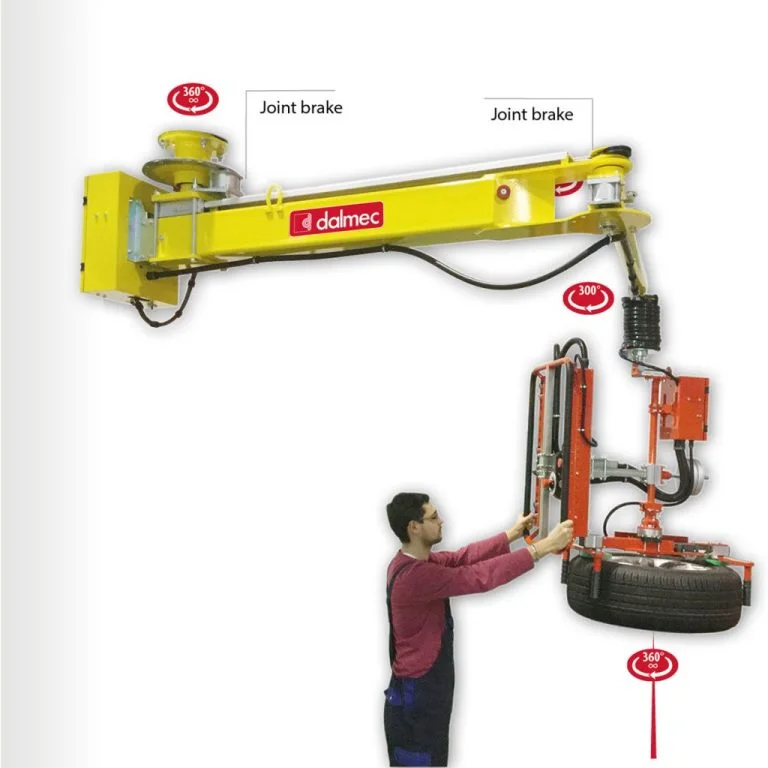

Dalmec Industrial Manipulators with Cable

DALMEC Industrial Manipulators with double cable, equipped with simple gripping tools, allow the handling of light loads in a weightless condition, throughout the working area. The gripping tool is connected to the balancing group by two independent steel cables to guarantee max safety. The particular double arm structure and middle joint makes it easy to operate within the entire working area.
