Description
- Pneumatic Manipulator Posiplus PP With Double Cable
- A pneumatic cylinder fed with compressed-air, combined with a transmission cables system provides balance to the load weight applied.
- The cylinder force is controlled through two pneumatic circuits purposely arranged: the first one always keeps the weight system balanced; the second one provides to always keep the weight load balanced.
- The operator can change the load level applying a minimum force on the gripping tool or directly on the load.

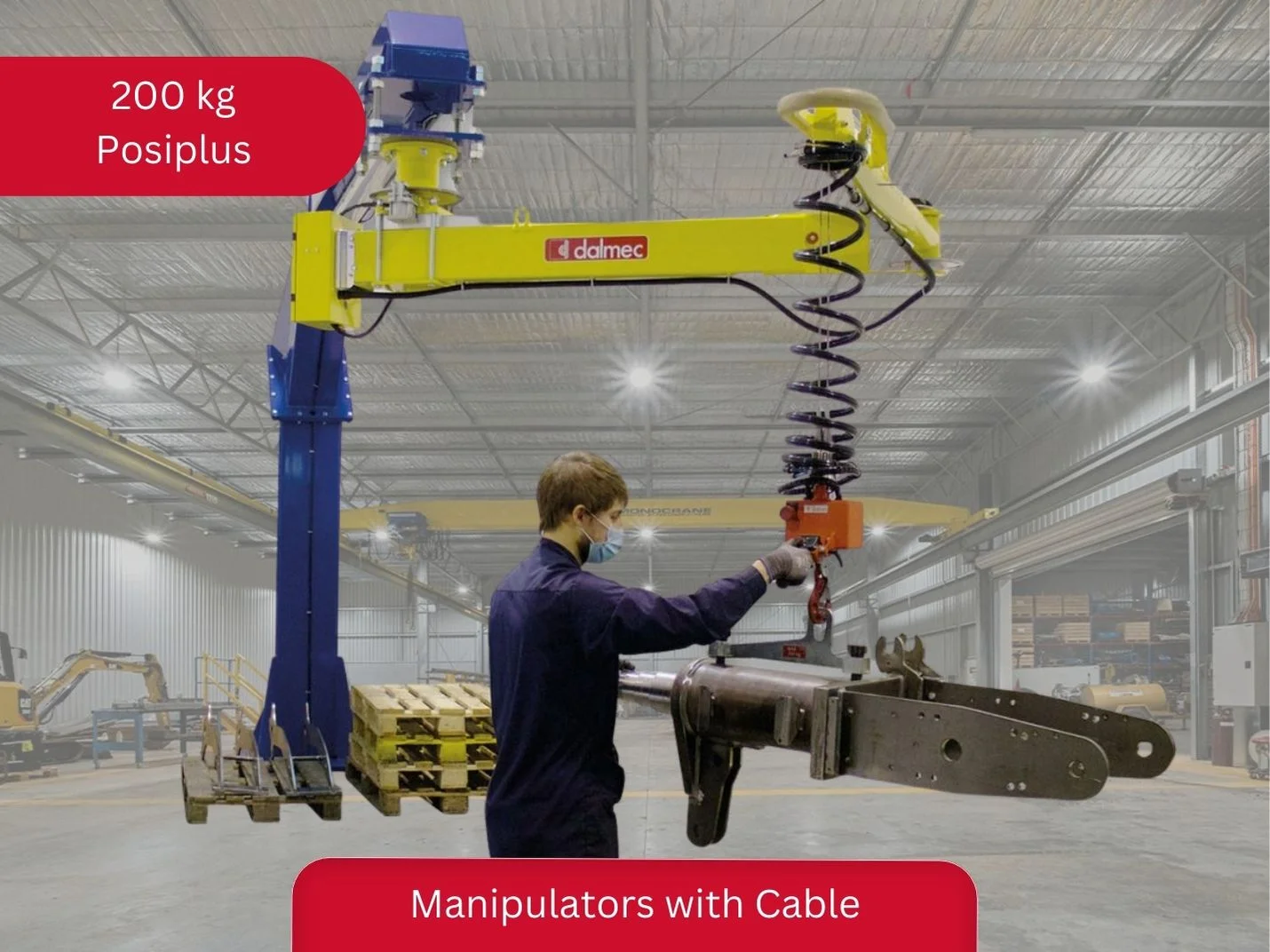

The Dalmec Posiplus is a cable pneumatic manipulator that lets a single operator handle loads up to 200kg across a wide working area, built for fast, repetitive lifting with virtually no physical effort. Like every Dalmec system it runs entirely on compressed air and is supplied with custom gripping tooling engineered around the specific product being handled. In Australia and New Zealand the Posiplus is supplied, installed and serviced by VLM, Dalmec’s exclusive distributor, and each installation is documented as an engineering control under the Work Health and Safety Act.
Technical Information
Max weight capacity
200 kg
Max working radius
4500 mm
Vertical lift
1900 mm
Control system
Solely Pneumatic
Max vertical lifting speed
0.5 meters/second
