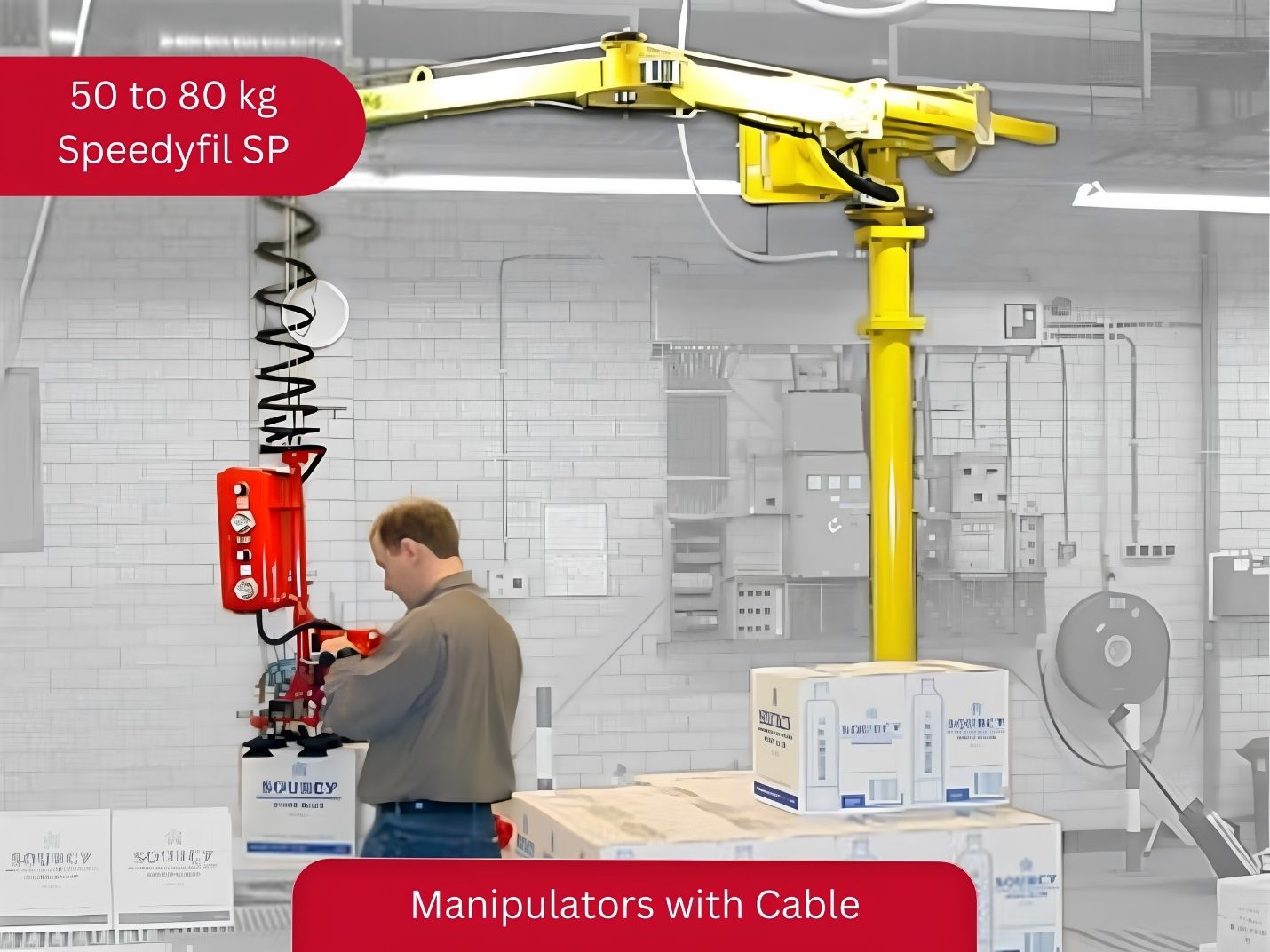

The Dalmec Speedyfil SP is a cable pneumatic balancer that lets a single operator handle loads up to 80kg on fast, repetitive vertical lifts with virtually no physical effort, cutting operator fatigue on high-frequency tasks. Like every Dalmec system it runs entirely on compressed air and is supplied with custom gripping tooling engineered around the specific product being handled. In Australia and New Zealand the Speedyfil SP is supplied, installed and serviced by VLM, Dalmec’s exclusive distributor, and each installation is documented as an engineering control under the Work Health and Safety Act.
Description
- Allows light loads to be weightlessly handled.
- The gripping tool is attached to the balancing group by two separate steel cables to guarantee safety.
- The double arm structure and middle joint makes it simple to operate within the entire working area.
Technical Information
Max weight capacity
50 to 80 kg
Max working radius
2000 mm
Vertical lift
1650 mm – 2150 mm
Control system
Solely pneumatic
Max vertical lifting speed
0.5 meters/second
